Ecotherm Insulation Board

The EcoTherm insulation board is a rigid PIR (polyisocyanurate) panel designed to prevent heat loss in buildings. Its thin and light structure makes it suitable for use in spaces where space and strength matter.

What Is EcoTherm Insulation Sheet?

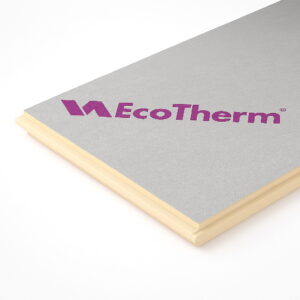

EcoTherm insulation sheet is a flat, foil-faced sheet made from polyisocyanurate (PIR) foam core in the middle and protective aluminium foils on both sides. The foam core traps heat, while the foil facings reflect radiant heat and protect the core from moisture and mechanical damage.

EcoTherm insulation boards must be installed above the Damp Proof Membrane (DPM) when used for floor insulation. They are suitable for domestic ground-bearing floors and ground-supported concrete slab systems, and have high dimensional stability.

They are commonly sold in various product ranges, such as Eco-Versal (versatile use), Eco-Cavity (for masonry cavity walls), and Eco-Bond, Eco-Torch, and Eco-Fix (for flat roofs only). These insulation boards can have a long service life depending on the background and supporting structure.

What Is EcoTherm Insulation Used For?

It is commonly installed in:

• Ground-bearing and suspended concrete floors
• Internal wall linings
• Flat roofs, pitched roofs, and ceilings

Builders choose it for floors that carry weight because many EcoTherm boards are designed to take loads.

UK solid-floor guidance recommends laying a DPM before rigid board installation.

Types Of EcoTherm Boards

EcoTherm insulation comes in these ranges:

• Eco-Versal – The all-rounder

Eco-Versal is a multi-performance panel made for wall and floor systems, pitched roofs, and ceilings. For floors, fit it above the DPM. It gives strong insulation in a small thickness and is suitable for applications that require solid thermal performance without adding bulk.

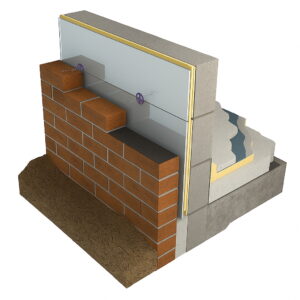

• Eco-Cavity – For masonry cavity walls

Eco-Cavity is specifically designed for installation between two masonry leaves in cavity wall construction. It comes in a size that allows installers to place wall ties correctly and leave a clear air gap in line with cavity-wall requirements. A thin construction that offers solid thermal gain.

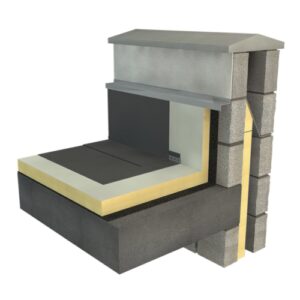

• Eco-Bond – For fully bonded flat roofs

Eco-Bond is intended for the fully adhered, single-ply flat-roof system and mechanically fixed membrane on timber, metal, and concrete decks. That means the membrane is stuck or fixed to the board rather than loose-laid.

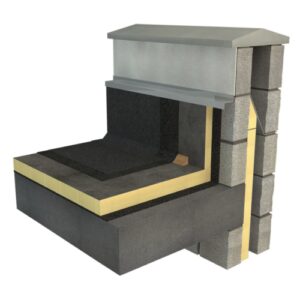

• Eco-Torch – For bitumen and torch-on systems

Eco-Torch is designed for roofs that use torch-applied or roll-and-pour bitumen felts. One side is prepared to accept hot bitumen or torching so the waterproof layer bonds reliably. Use Eco-Torch with torch-on felt or mastic asphalt finishes.

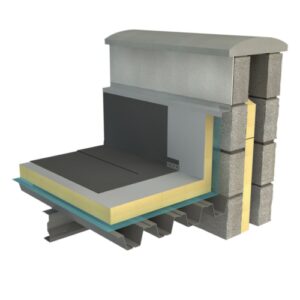

• Eco-Fix – For mechanically fixed single-ply membranes (and tapered options)

Eco-Fix is mechanically fixed and accepts single-ply membranes. There are flat and tapered versions for drainage and falls. It is BBA-assessed for use on limited-access concrete, timber, and metal decks, so it is a good pick where a contractor will screw or fix the board down.

Benefits Of The Insulation EcoTherm Sheet

Here are some perks of using an EcoTherm board:

• Thin and efficient – Low thermal conductivity, with good U-values in less thickness (λ ≈ 0.022–0.027 W/m·K depending on product). The reflective foil facing’s low-emissivity surface can reduce radiant heat transfer across an adjoining air space.
• Strong for floors – Foil-faced PIR can carry loads. Compressive stress varies with each specific product.
• High-performance aluminium foil facings – Skins protect the rigid core.
• Durability – Eco-Versal has a long life span when installed correctly, and its longevity is dependent on the background or supporting structure, as well as the conditions of use.
• High compressive Strength – When tested at 10% compression in accordance with BS EN 826:1996, Eco-Versal achieves a compressive strength of ≥140 kPa.
• Fire Performance – EcoTherm Eco-Versal achieves a BS 476-7:1997 Class 1 surface spread of flame classification. The system’s specific fire resistance will be determined by the conditions of operation.

Why Choose Our EcoTherm Sheet?

Here’s why trades and builders choose EcoTherm sheets from Insulation Wholesale:

• Trusted supplier of leading brands – We stock a wide range of EcoTherm boards from the leading manufacturers:
• Straightforward order process – Our ordering process is easy as 1, 2, 3.
• Bulk prices and volume discounts – Enjoy low prices on all our products when you buy in bulk. We also have seasonal promotions for you to grab.
• Quick dispatch and nationwide delivery – Enjoy fast and reliable UK-wide delivery to your site or kerbside.
• Excellent customer support and expert advice – Our team is ready to help you choose the right EcoTherm boards ideal for your project.

Looking for EcoTherm PIR insulation for floors or roofs? We offer trade stock and next-day delivery options. Contact our sales team for stock, sizing, and delivery choices.

FAQ

Where to buy EcoTherm insulation board?

Purchase EcoTherm insulation boards online from Insulation Wholesale. We offer the complete range of EcoTherm insulation – Eco-Versal PIR boards, Eco-Fix roofing boards, Eco-Bond roof panels, Eco-Torch roofing PIR, and Eco-Cavity panels (full-fill and partial-fill cavity options). Contact us for a fast quote with prompt delivery across the UK.

Is EcoTherm insulation good?

Yes, EcoTherm PIR boards give high thermal performance per millimetre. They meet standard test needs (thermal, compression, and surface spread ratings), but always check the product datasheet for the specific board you plan to use.

How to cut EcoTherm insulation sheet?

1. Score the foil with a straight edge and a utility knife.
2. Cut several passes, and then snap the EcoTherm board. A sharp handsaw or a fine-toothed panel saw is best for thicker sheets.
3. Trim foil carefully to keep facings neat, then seal joints if the build system requires it.

For safety, use a stable workbench and wear gloves, eye protection, and a dust mask.
